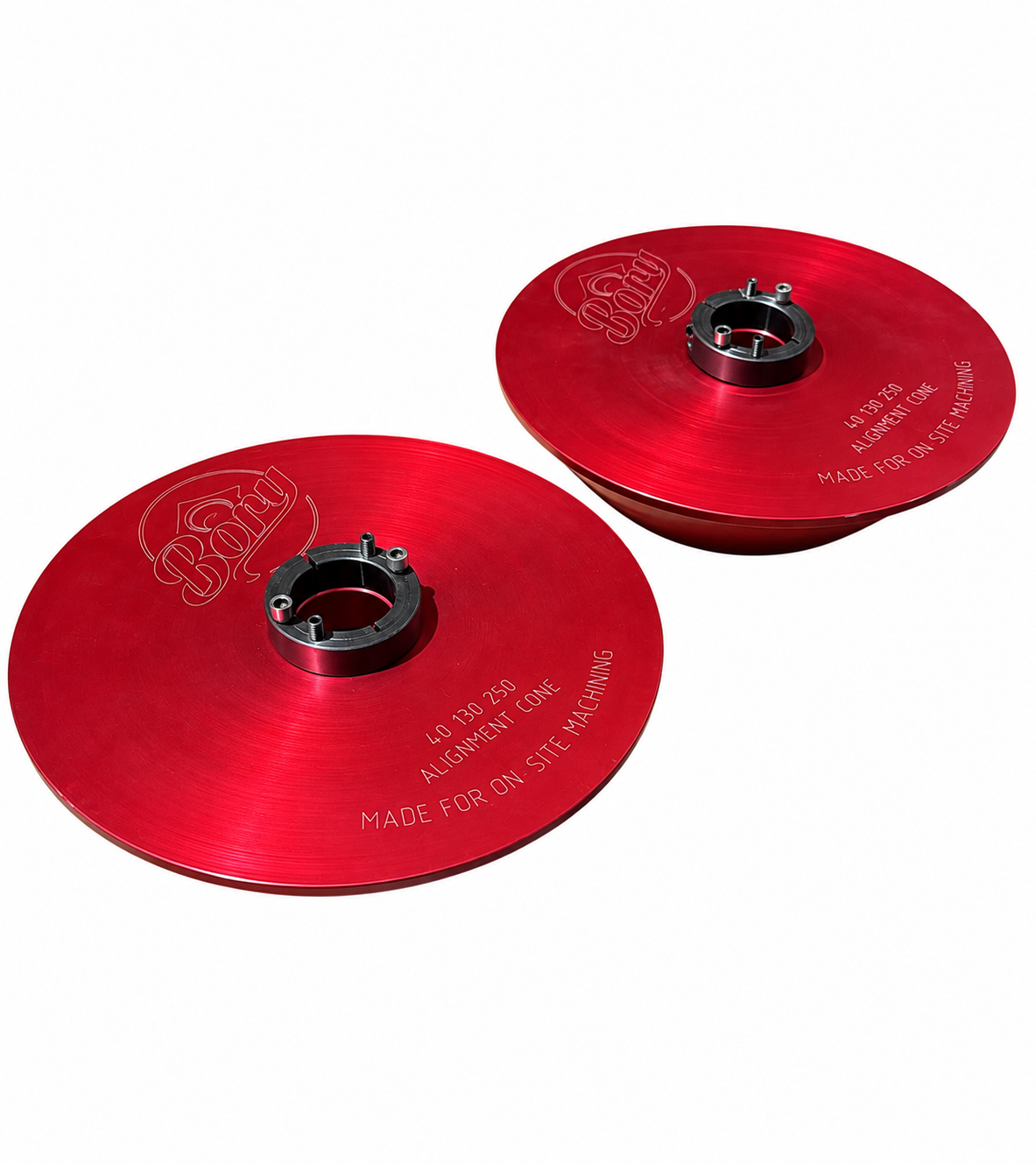

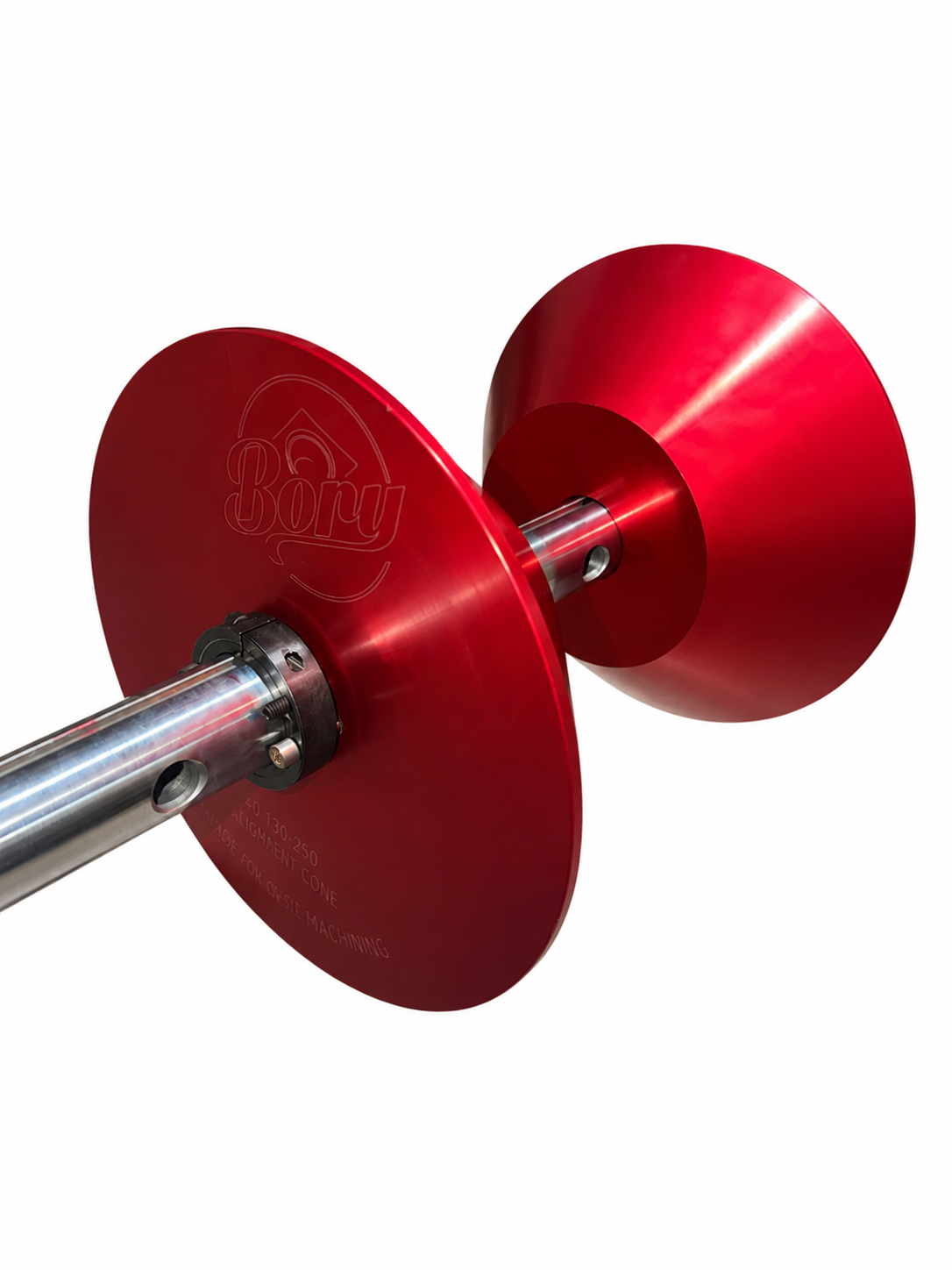

Alignment Cones for 40mm Line Boring Bars - 130-250mm Range (Pair)

Bory Alignment Cones –130 to 250 mm Bore Range – 40mm Line Boring Bar (Pair)

Designed by machinists for machinists, Bory Alignment Cones provide a fast, accurate and frustration-free method of aligning line boring bars.

Manufactured in the United Kingdom from aluminium, these alignment cones feature an integrated clamping and jacking system that allows the collars to be securely fixed to the boring bar while the jacking screws precisely position the cones within the bore. The result is quicker set-up times, improved alignment accuracy and a simpler, more controlled installation process.

Suitable for bores ranging from 130 to 250 mm, this big set is designed to fit all 40mm diameter line boring bars, making them compatible with a wide range of portable line boring systems, including Elsa, Sir Meccanica, Maucotools, and other industry-standard equipment using 40mm bars.

Features

• Bore range: 130-250mm
• Suitable for 40mm diameter line boring bars
• Manufactured from aluminium for weight saving
• Integrated clamping and jacking arrangement for precise positioning and improved set-up efficiency
• Red anodised finish for enhanced corrosion resistance
• Designed and manufactured in the United Kingdom
• Supplied as a matched pair

Supplied As

• 2 × Alignment cones
• 2 × Integral clamping collars
• Jacking and locking screws fitted

These huge line boring alignment cones are designed to simplify machine set-up, reduce installation time and improve alignment accuracy when carrying out portable line boring operations.

If you require alignment cones for a different boring bar diameter or bore range, please get in touch. We manufacture a wide range of standard sizes and can also produce bespoke solutions to suit your specific application.

Designed by machinists. Manufactured in the UK. Made for On-Site Machining.
