Adjustable Bowtie plates for Elsa bearings

****please get in touch by email for a personal shipping quote on this product*****

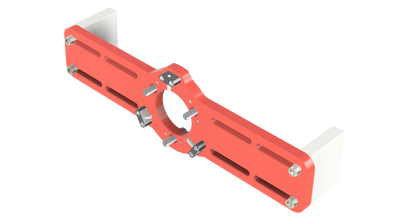

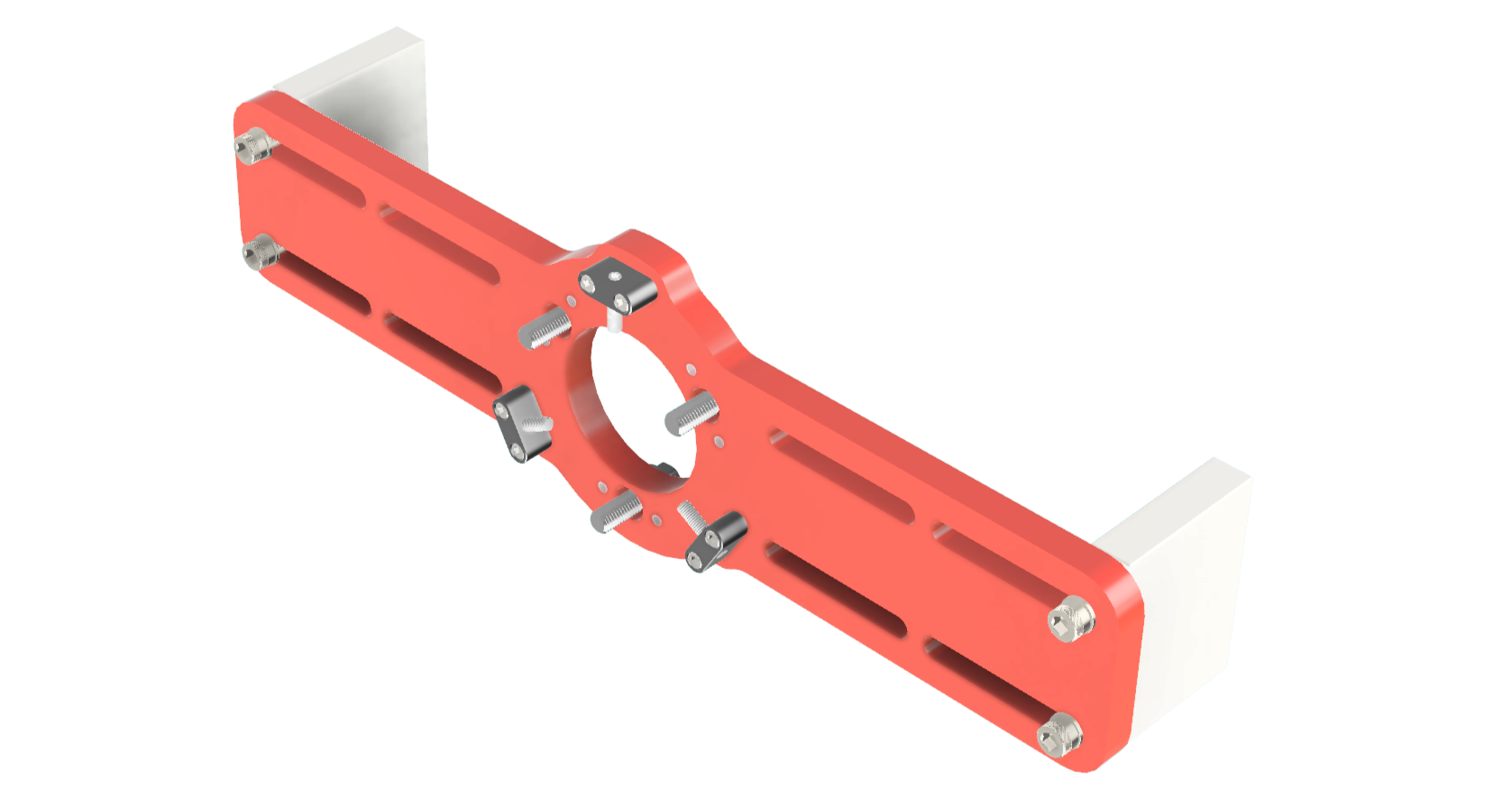

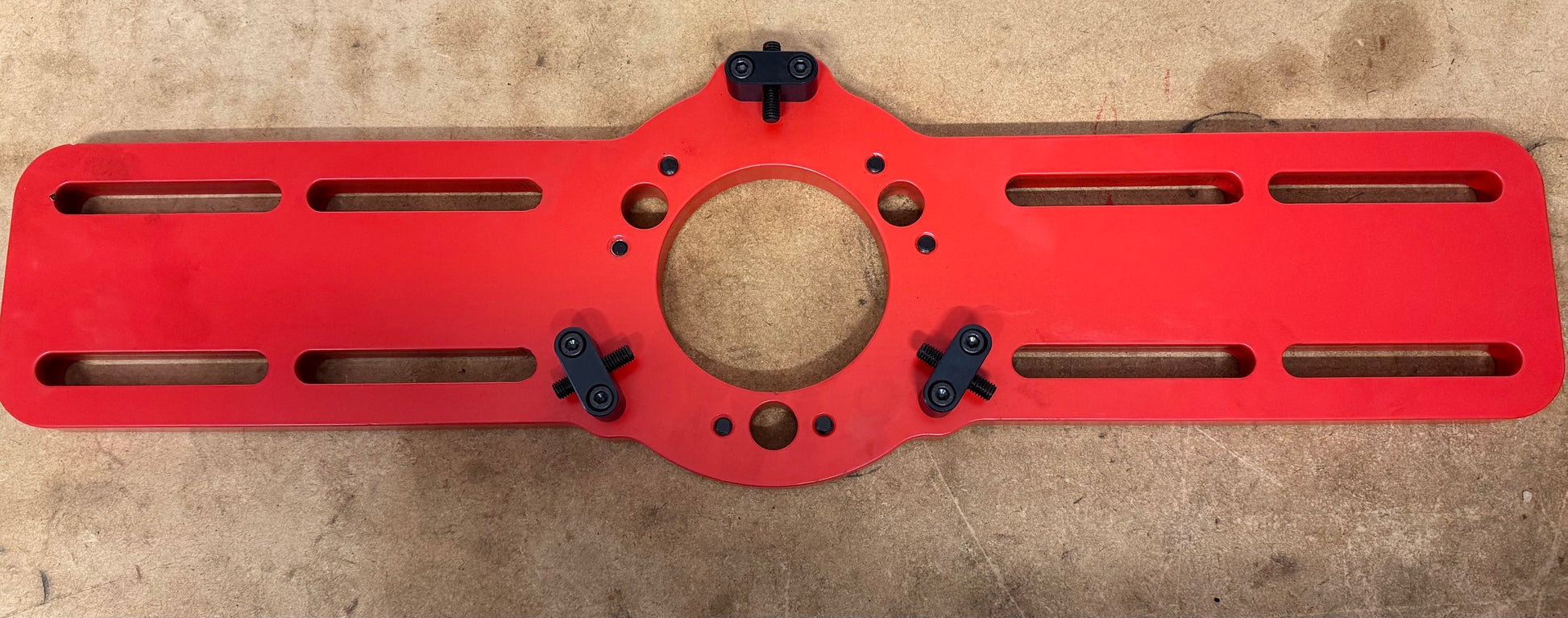

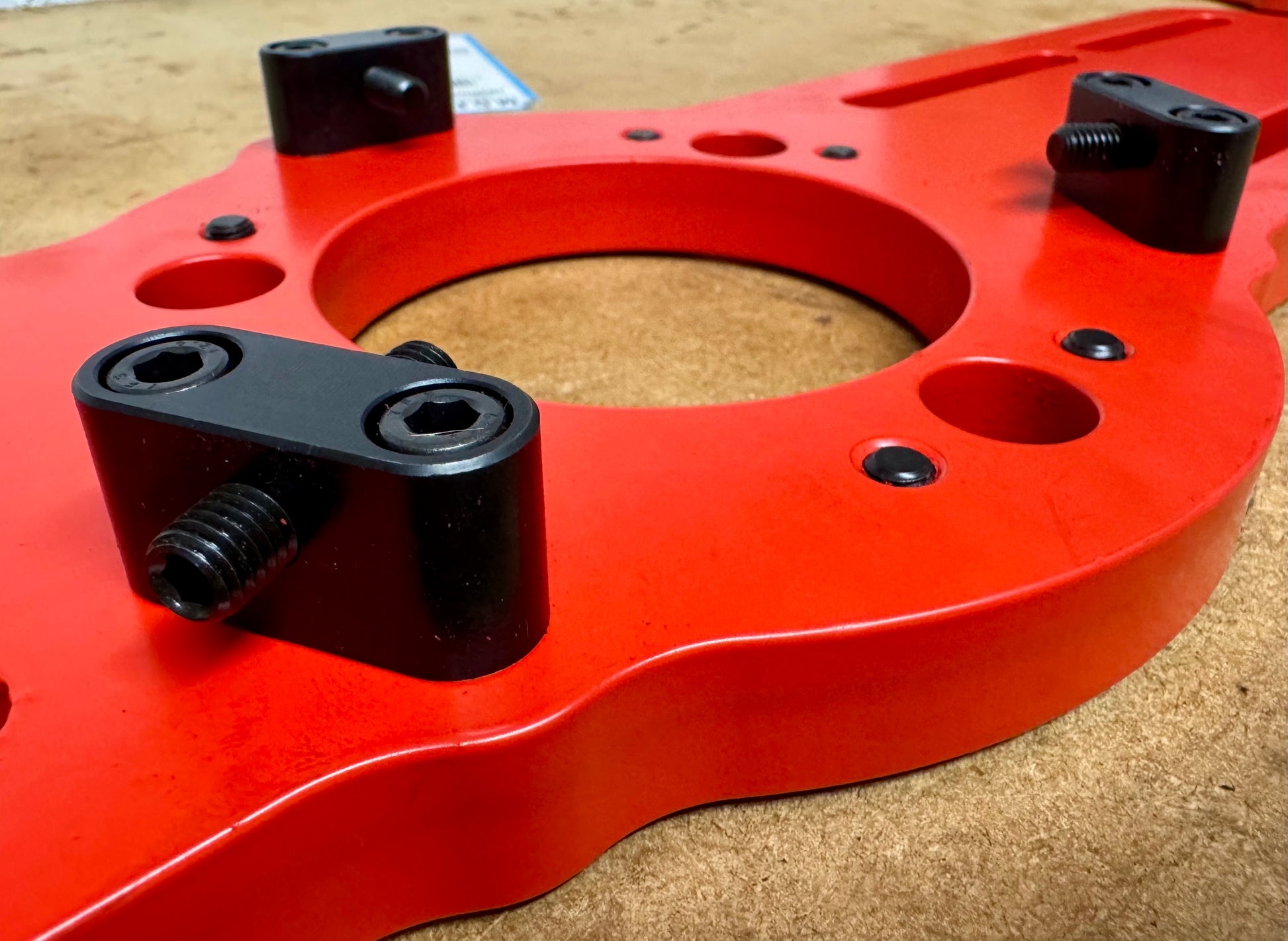

A pair of double  legged Adjustable "Bowtie" plates for Elsa machine bearings

will fit a bore of 500mm diameter

similar in design to the climax style bearing mounts

these bearing mounting plates are made from 20mm plate and give you 8mm of adjustment allowing you to align your bars perfectly after they have been welded to the job

Designed to be used with the supplied 25mm sacrificial weld on leg plates  ,

these Lollipop Mounts give excellent rigidity, stability and more importantly - they allow you to make adjustments to your bar alignment

made here in the UK

they are shipped  ready to go with the bearing mounting bolts, grub screws, 25mm sacrificial weld on plates  and bolts

Developed tried and tested by ourselves , manufactured here in the UK

****please get in touch by email for a personal shipping quote on this product*****
